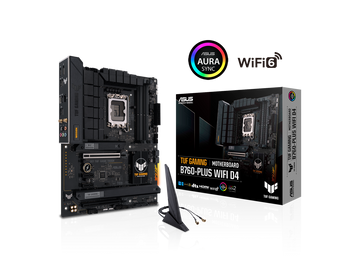

ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 (13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C

Regular price Rs.0.00
Sale price Rs.0.00 Regular price
Save
  • Estimated Courier Delivery:15 Jul - 19 Jul

  • Free Shipping: On all orders

Secure checkout available for advance payments

Product description
    • The Intel LGA 1700 socket supports 13th Gen Intel Core processors, as well as 12th Gen Intel Core, Pentium Gold, and Celeron Processors.
    • The power solution has been enhanced with 12+1 DrMOS power stages, a six-layer PCB, 8+4 ProCool sockets, military-grade TUF components, and Digi+ VRM to maximize durability.
    • The cooling system is comprehensive, with enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 4.
    • The latest connectivity options include a PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, a front panel header for USB 3.2 Gen 2 Type-C, and support for Thunderbolt (USB4) headers.
    • The motherboard is specifically designed for online gaming, with features such as Intel WiFi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard.
    • Two-way AI Noise-Cancelation reduces background noise from the microphone and audio output, allowing for clear communication during games or video conferences.
    • The memory supports DDR4-5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC).



    Model

    Brand ASUS
    Model TUF GAMING B760-PLUS WIFI D4
    Part Number 90MB1DF0-M0AAY0
    Supported CPU
    CPU Socket Type  LGA 1700
    CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
    Chipsets
    Chipset  Intel B760
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
    Maximum Memory Supported 128GB
    Channel Supported  Dual Channel
    Memory Feature Supports Intel Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
    Expansion Slots
    PCI Express 5.0 x16 Intel 13th & 12th Gen Processors
    1 x PCIe 5.0 x16 slot
    PCI Express 3.0 x16 Intel B760 Chipset
    1 x PCIe 3.0 x16 slot (supports x4 mode) *
    PCI Express x1 2 x PCIe 3.0 x1 slots*
    * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2. When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage Devices
    SATA 6Gb/s  4 x SATA 6Gb/s
    M.2 Intel 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    SATA RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
    Onboard Audio
    Audio Chipset  Realtek 7.1 Surround Sound High Definition Audio CODEC
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Dedicated audio PCB layers
    - Audio cover
    Audio Channels  7.1 Channels
    Onboard LAN
    Max LAN Speed 1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    Wireless LAN Wi-Fi 6
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth Bluetooth v5.2
    *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

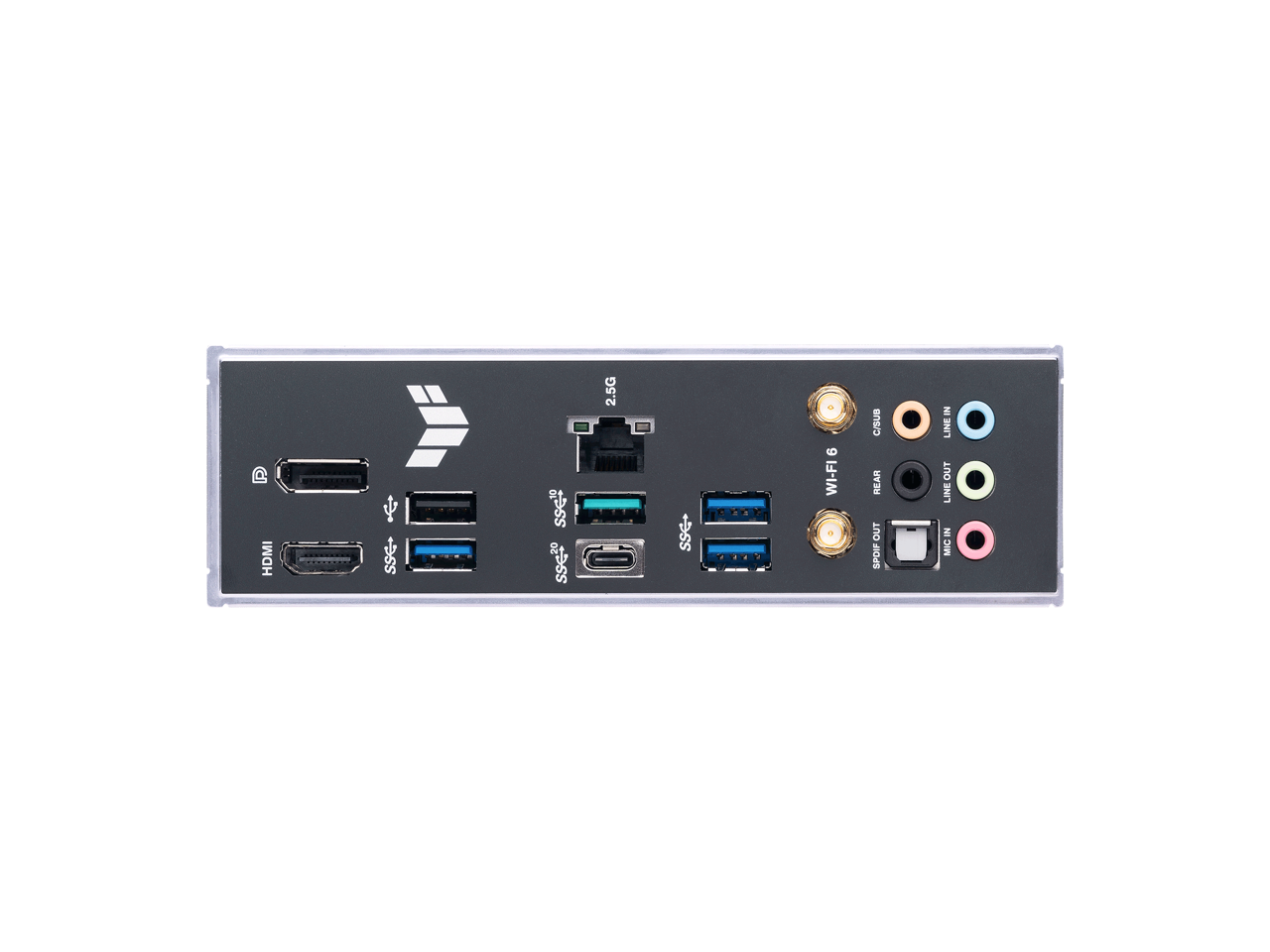

    Rear Panel Ports
    Back I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 ports (3 x Type-A)
    1 x USB 2.0 port (1 x Type-A)
    1 x DisplayPort
    1 x HDMI port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Other Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers

    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports

    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt (USB4) header
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Windows Compatibility
    Windows 11 Supported
    Features
    Features ASUS TUF PROTECTION
    - DIGI+ VRM (- Digital power design with DrMOS)
    - ESD Guards
    - TUF LANGuard
    - Overvoltage Protection
    - SafeSlot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - CPU Socket lever protector
    - ProCool
    - Pre-mounted I/O shield
    - SafeSlot Core+
    - SafeDIMM
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers
    Packaging
    Package Contents Cables
    2 x SATA 6Gb/s cables

    Miscellaneous
    1 x ASUS Wi-Fi moving antenna
    1 x TUF Gaming sticker
    2 x M.2 Rubber Packages
    1 x Screw package for M.2 SSD

    Documentation
    1 x TUF Certification card
    1 x User guide
    Additional Information
    Date First Available December 19, 2022
