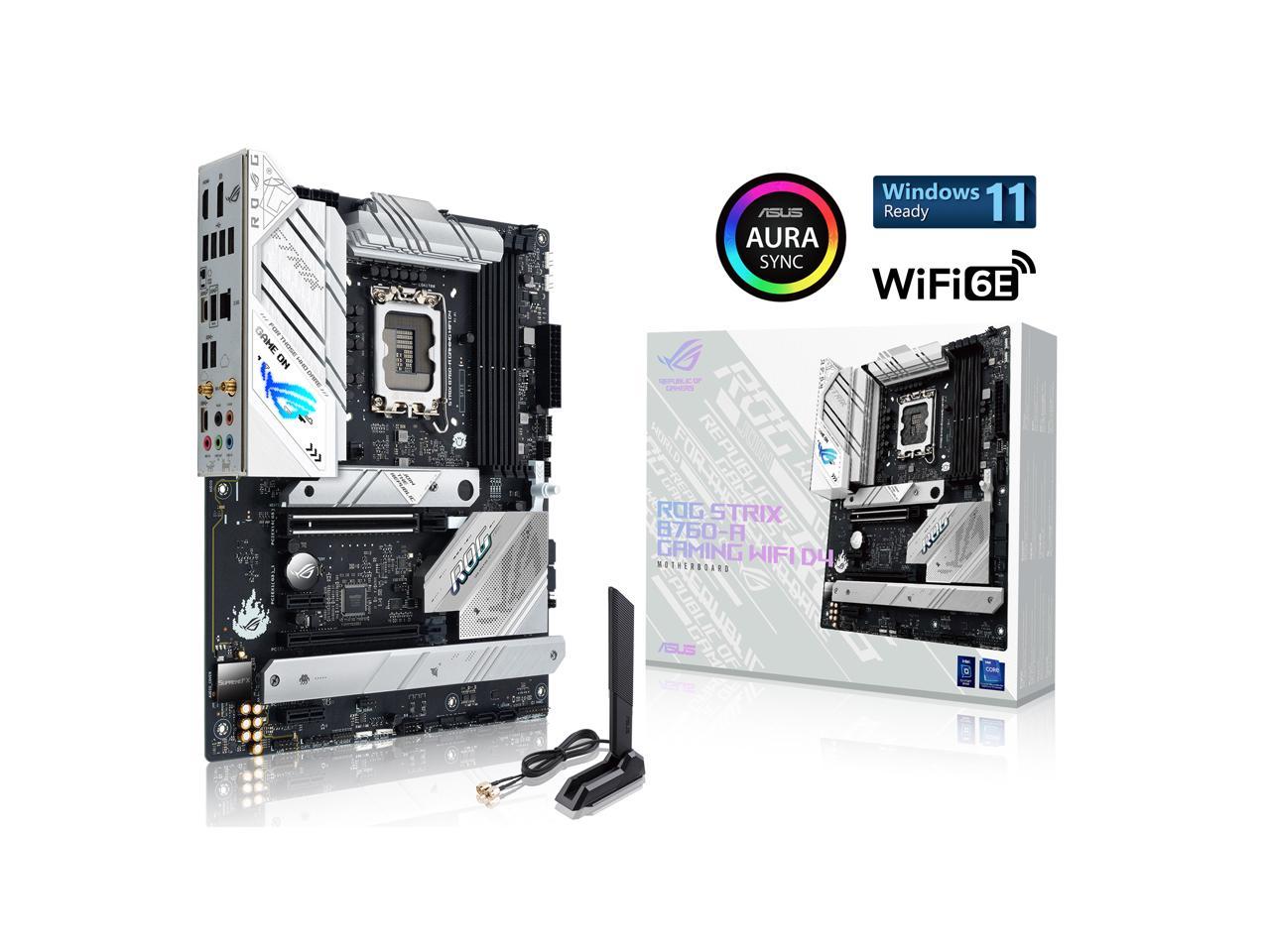

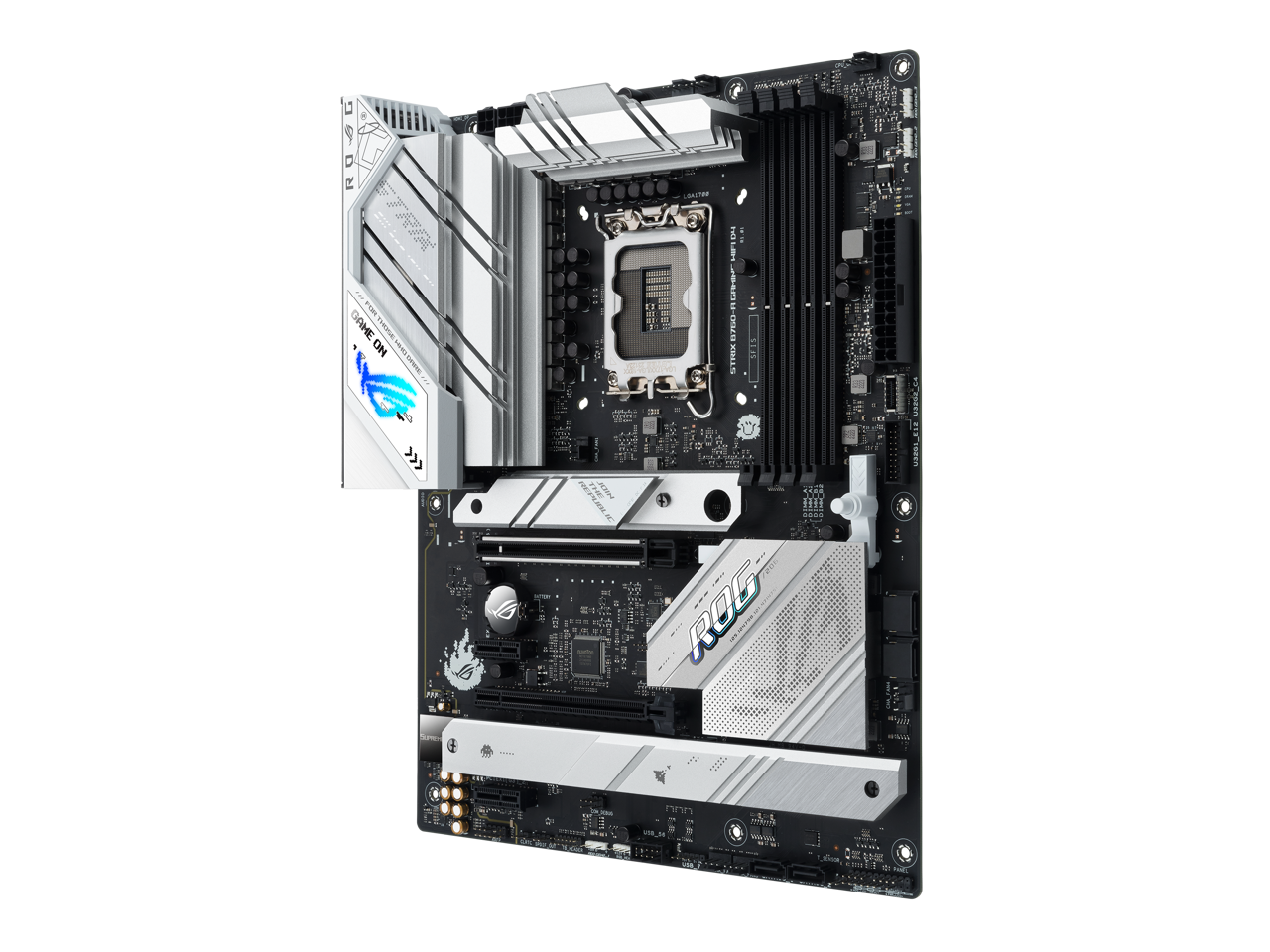

ASUS ROG Strix B760-A Gaming WiFi D4 Intel B760 (13th and 12th Gen) LGA 1700 white ATX motherboard, 12 + 1 power stages, DDR4, PCIe 5.0, three M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

Rs.0.00
Rs.0.00
Save

  • Estimated Courier Delivery:22 Oct - 26 Oct

  • Free Shipping: On all orders

Secure checkout available for advance payments
Ask a question Share
Product description

Ready for Multi-Core Processors
The motherboard boasts an LGA 1700 socket that supports various processors, including 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron. It features a robust power solution with 12+1 power stages, high-quality alloy chokes, durable capacitors, and ProCool power connectors that deliver reliable power to multi-core CPUs.

Efficient Thermal Design
To keep the motherboard cool during intense workloads, the power stages are bridged to thick heatsinks with high-conductivity thermal pads. The optimized VRM thermals ensure that the motherboard operates smoothly and reliably under heavy loads.

Fast and Reliable Networking
The motherboard comes with an on-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard, delivering high-speed connectivity for seamless online experiences.

Versatile Connectivity
With abundant connectivity options, the motherboard includes a USB 3.2 Gen 2x2 Type-C rear I/O port, eight additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4. These ports provide users with diverse connectivity options for peripherals, displays, and storage.

Intelligent Control and Software
ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation simplify the setup process and enhance the overall performance of the motherboard. Moreover, the bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86 make it easy to manage and monitor system information.



Model
Brand ASUS
Model ROG STRIX B760-A GAMING WIFI D4
Part Number 90MB1DD0-M0AAY0
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset  Intel B760
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Memory Feature Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Expansion Slots
PCI Express 5.0 x16 Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
PCI Express 3.0 x16 Intel B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode) *

* PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express x1 2 x PCIe 3.0 x1 slots*
* PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Onboard Audio
Audio Chipset  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 1 x Intel 2.5Gb Ethernet
ASUS LANGuard // TUF LANGuard
Wireless LAN Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Supports Intel Double Connect Technology
* WiFi 6E 6GHz regulatory may vary between countries.
Bluetooth Bluetooth v5.3
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5 pin System Panel header
1 x Thunderbolt (USB4) header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features
Features Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Packaging
Package Contents Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x M.2 Rubber Packages

Documentation
1 x User guide
Additional Information
Date First Available April 30, 2023
