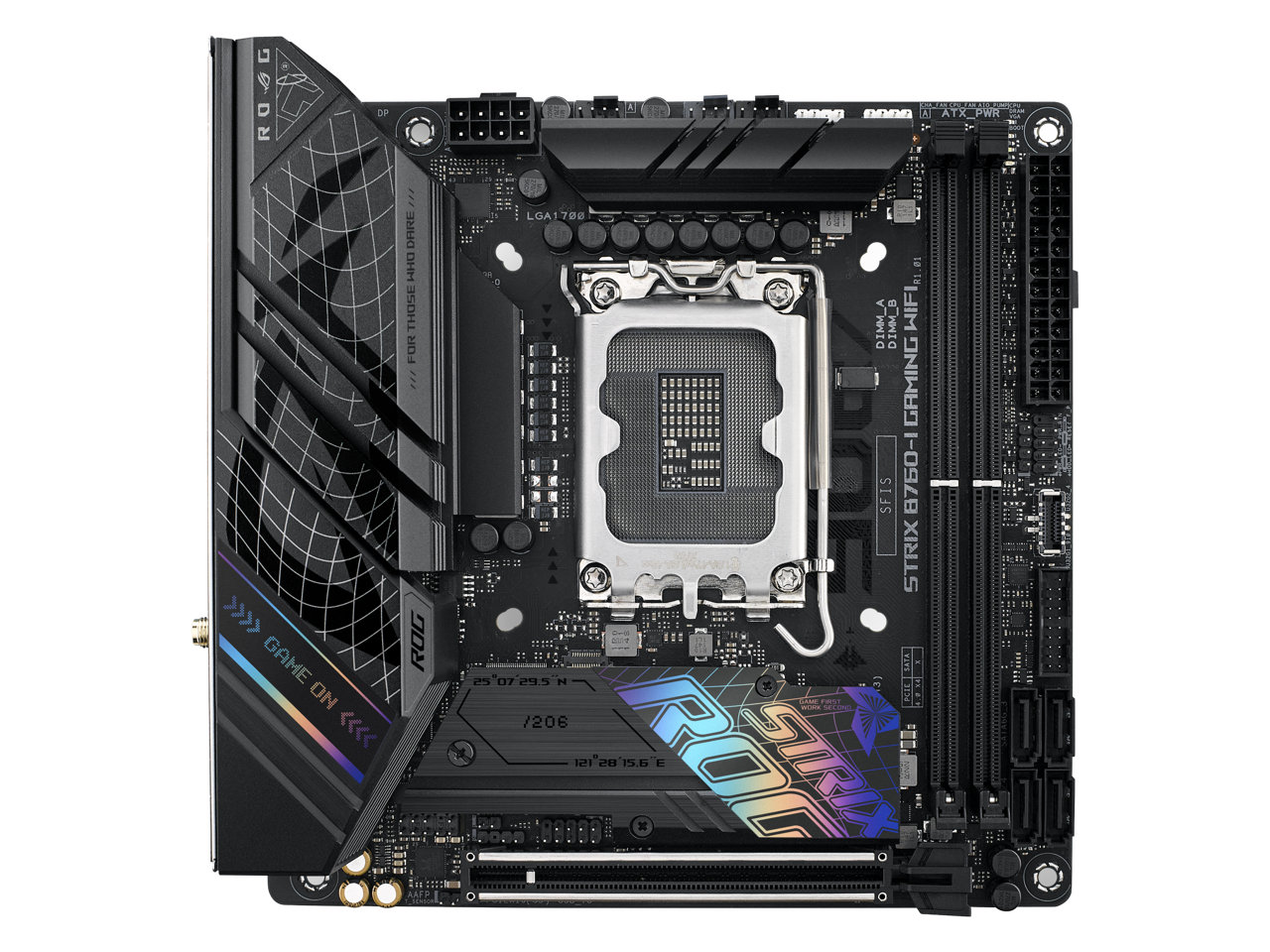

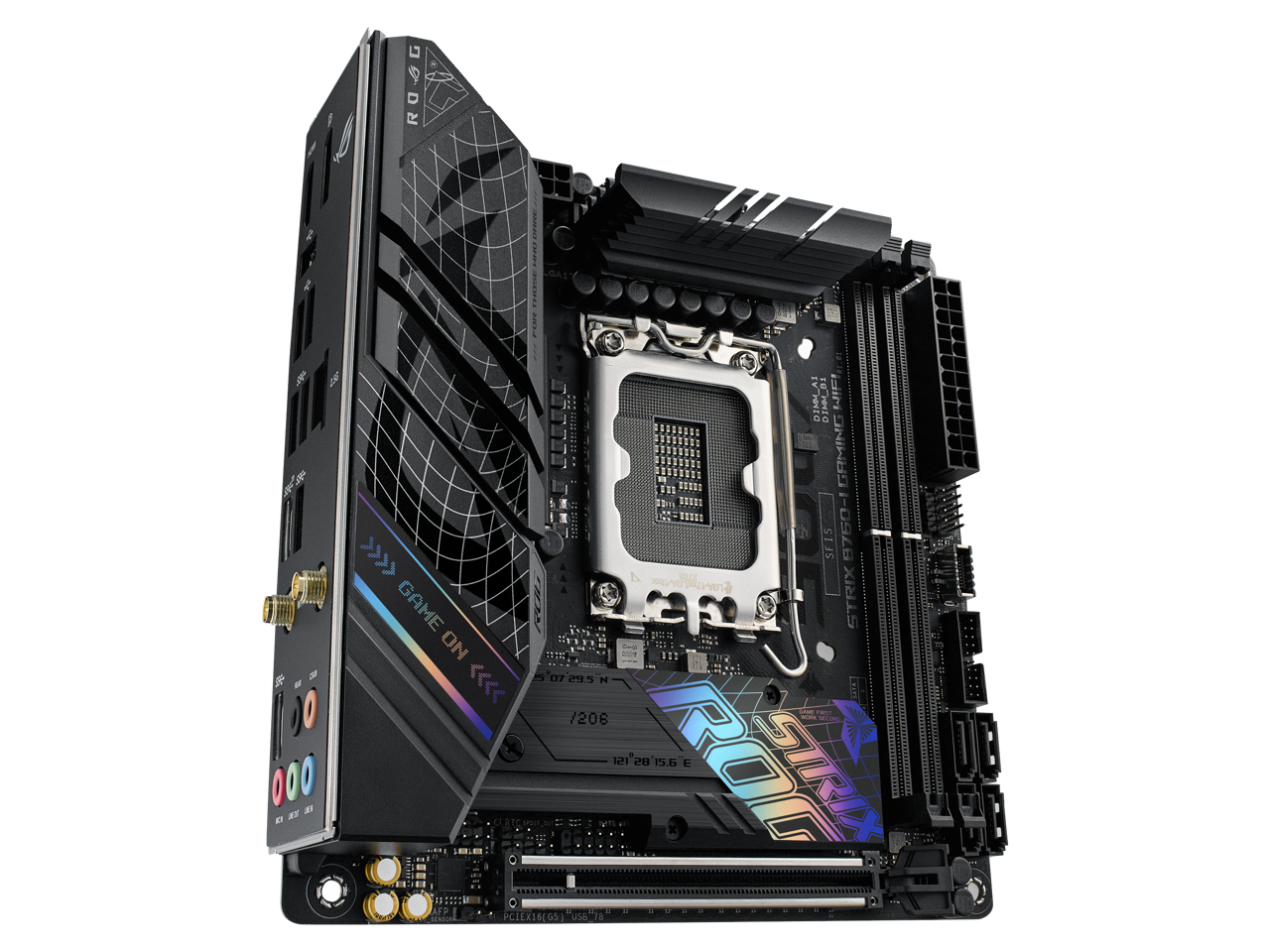

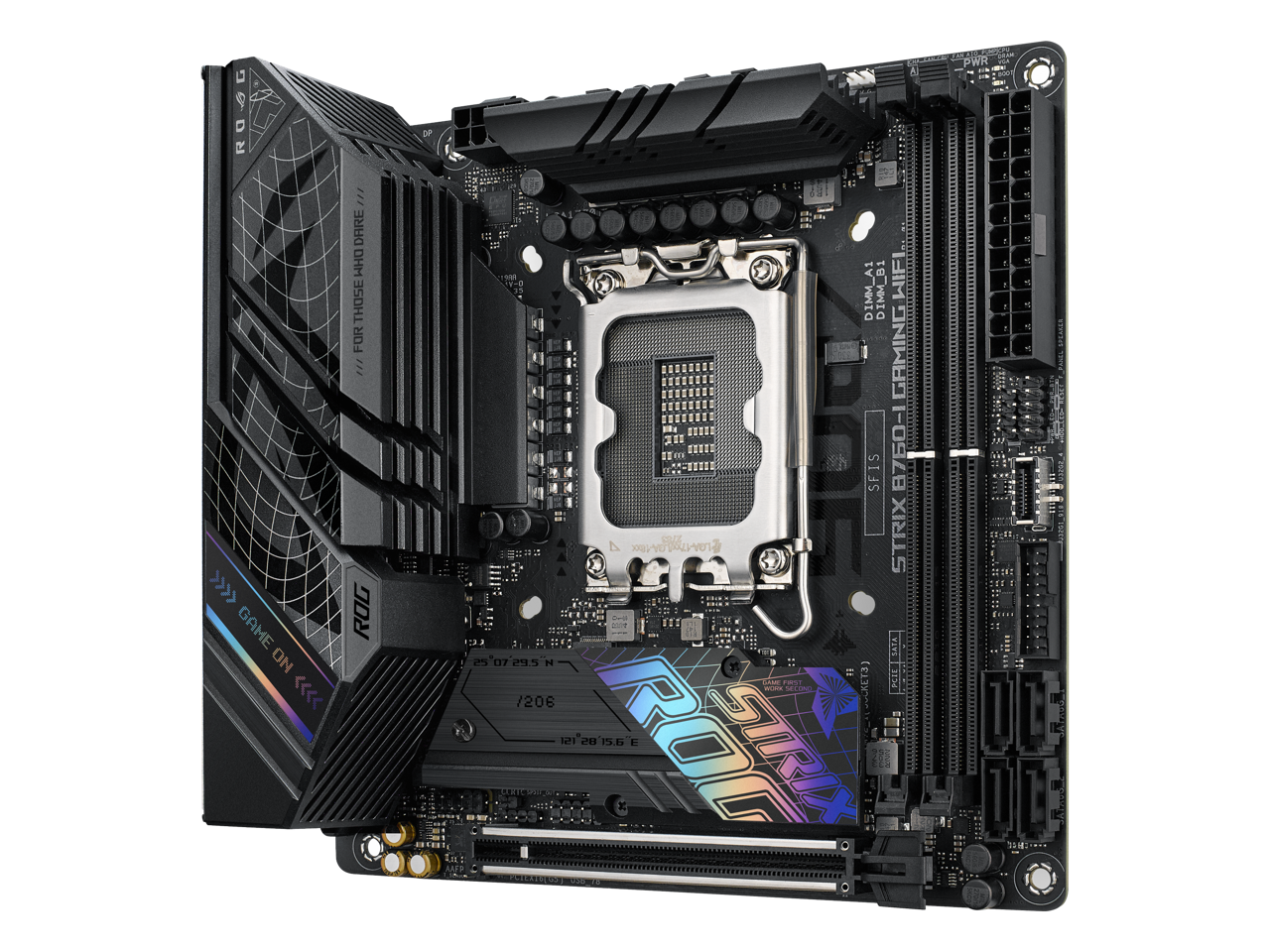

ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

Regular price Rs.0.00
Sale price Rs.0.00 Regular price
Save
  • Estimated Courier Delivery:25 May - 29 May

  • Free Shipping: On all orders

Secure checkout available for advance payments

Product description
  • The Intel LGA 1700 socket can accommodate 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron Processors.
  • The power solution is robust, with 8+1 power stages rated for 80A, ProCool power connectors, high-quality alloy chokes, and durable capacitors, making it suitable for the latest multi-core processors.
  • The VRM thermals are optimized with thick heatsinks bridged to the VRM using high-conductivity thermal pads, and the larger one integrated with the I/O cover for increased surface area.
  • The motherboard supports ample M.2 with two PCIe 4.0 M.2 slots, one with a sturdy heatsink, and the other placed on the rear to save space.
  • The motherboard features next-gen networking, with on-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard.
  • The gaming audio is industry-leading, with S1220A codec with Savitech SV3H712 amplifier, along with DTS Sound Unbound™ and Sonic Studio III.
  • The software is renowned and includes a bundled 60-day AIDA64 Extreme trial subscription and an intuitive UEFI BIOS dashboard with integrated MemTest86. The motherboard also features intelligent control.

Model

Brand ASUS
Model ROG STRIX B760-I GAMING WIFI
Part Number 90MB1D90-M0AAY0
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset  Intel B760
Memory
Number of Memory Slots 2x288pin (DDR5)
Memory Standard DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported 64GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 5.0 x16 Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Onboard Audio
Audio Chipset  ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LAN Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth Bluetooth v5.3

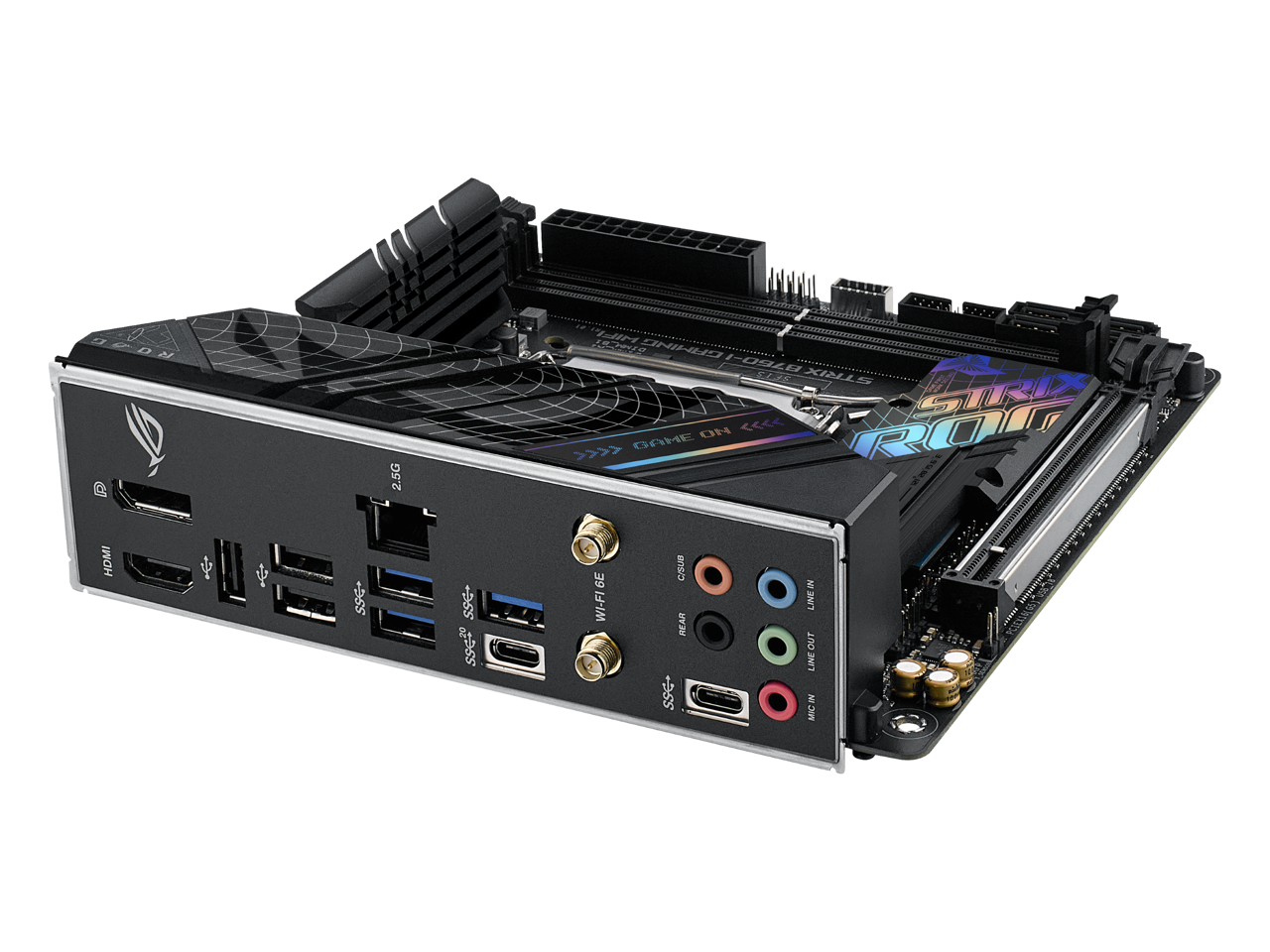

Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 1 ports (3 x USB Type-A )
1 x USB 3.2 Gen 1 port (1 x USB Type-C)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMI port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support additional 2 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chasis Fan header
1 x 4-pin AIO Pump header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
1 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features
Features Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
ASUS EZ DIY
-CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 header

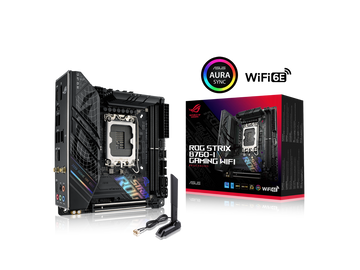

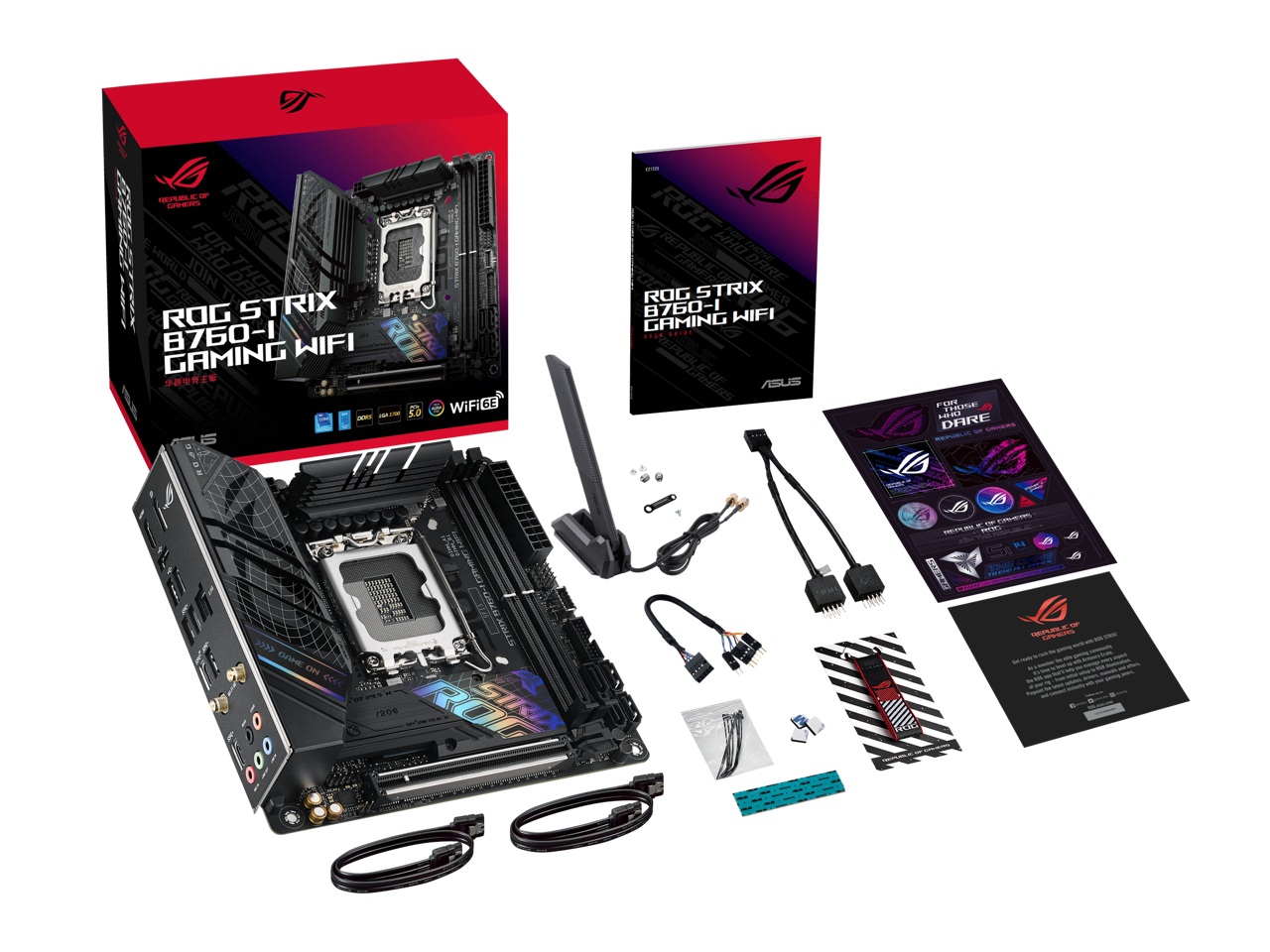

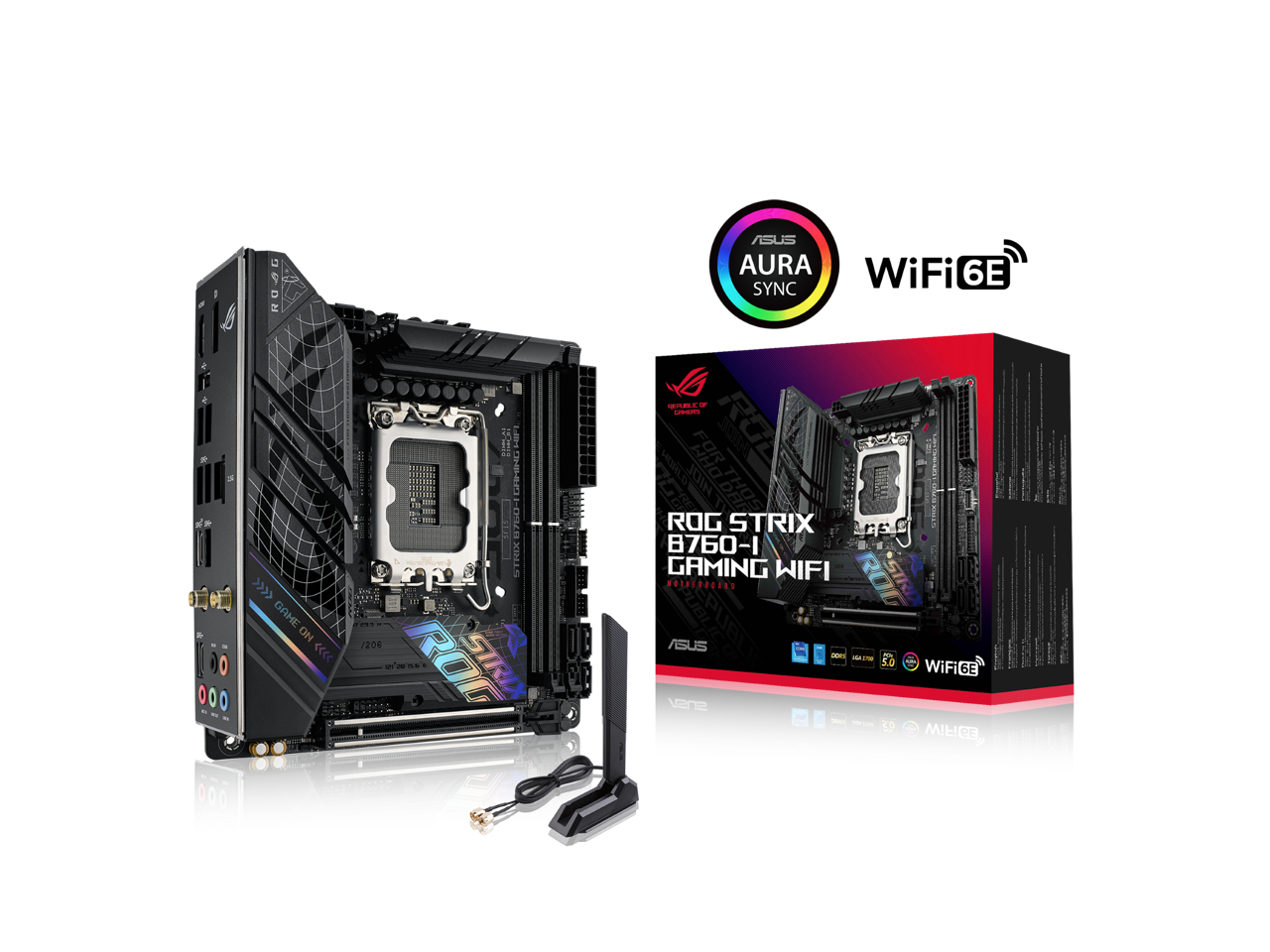

Packaging
Package Contents Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable

Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
1 x M.2 bracket
1 x ROG key chain
1 x ROG STRIX stickers
1 x ROG STRIX thank you card

Documentation
1 x User manual
Additional Information
Date First Available December 19, 2022
