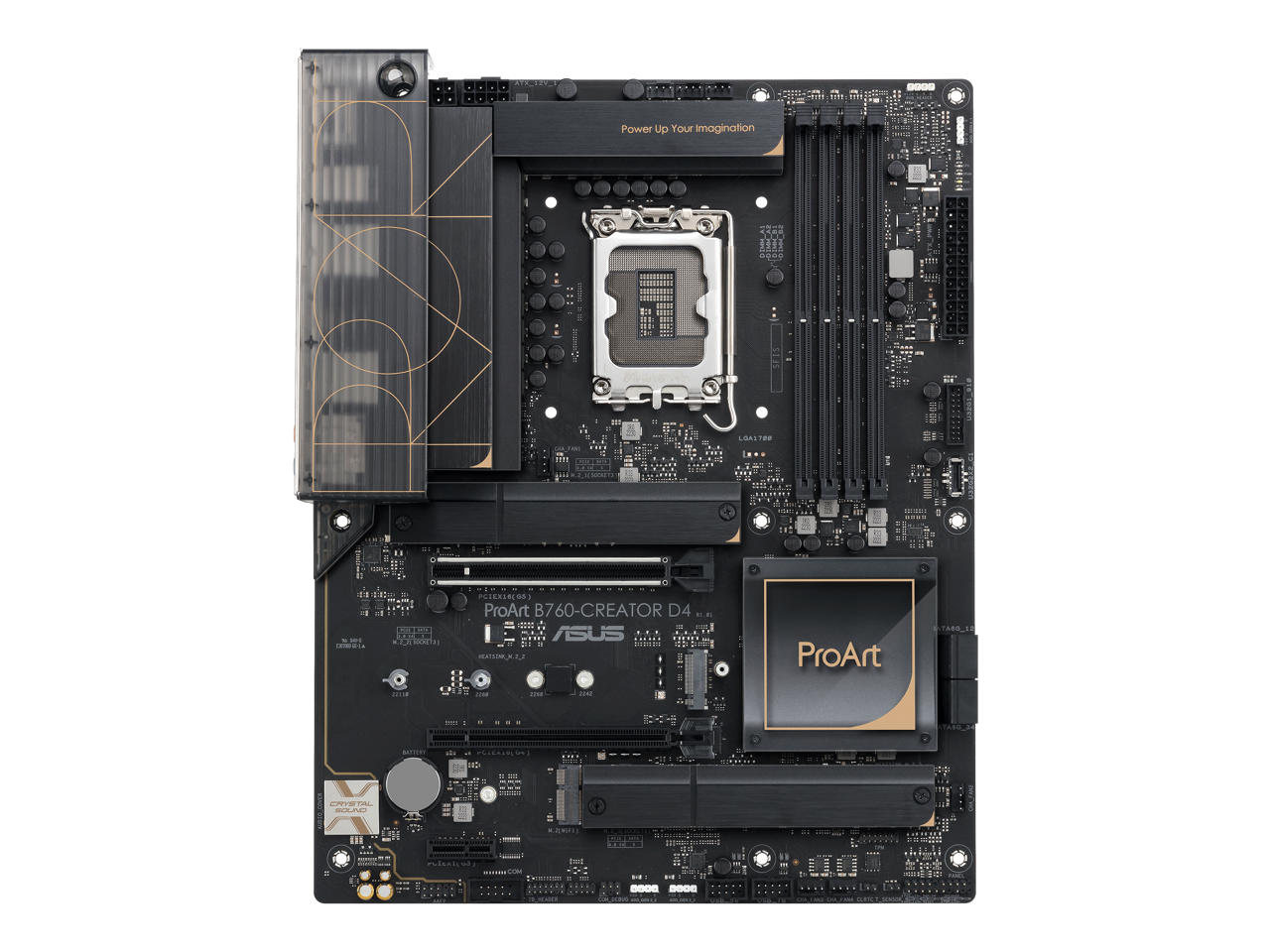

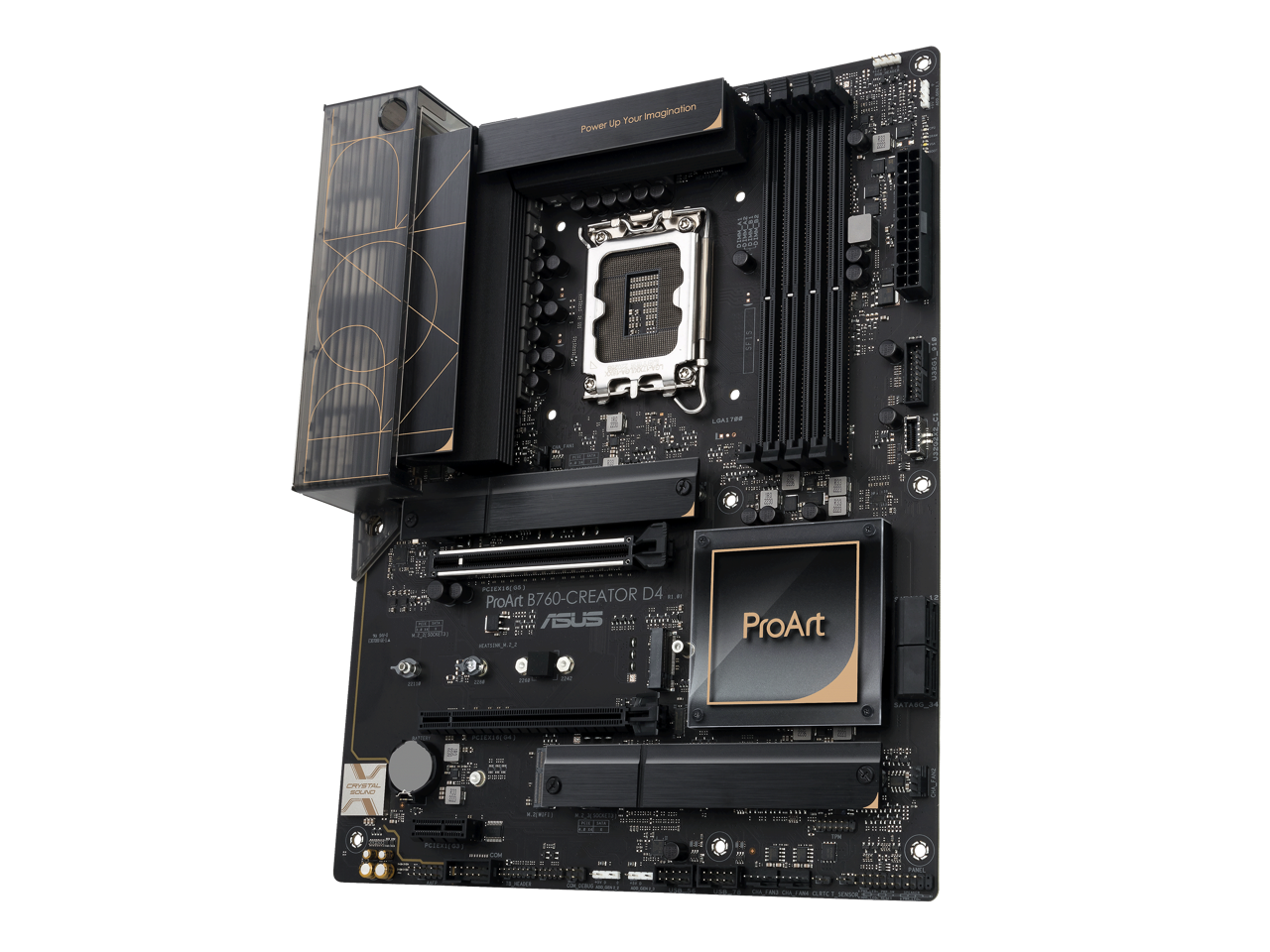

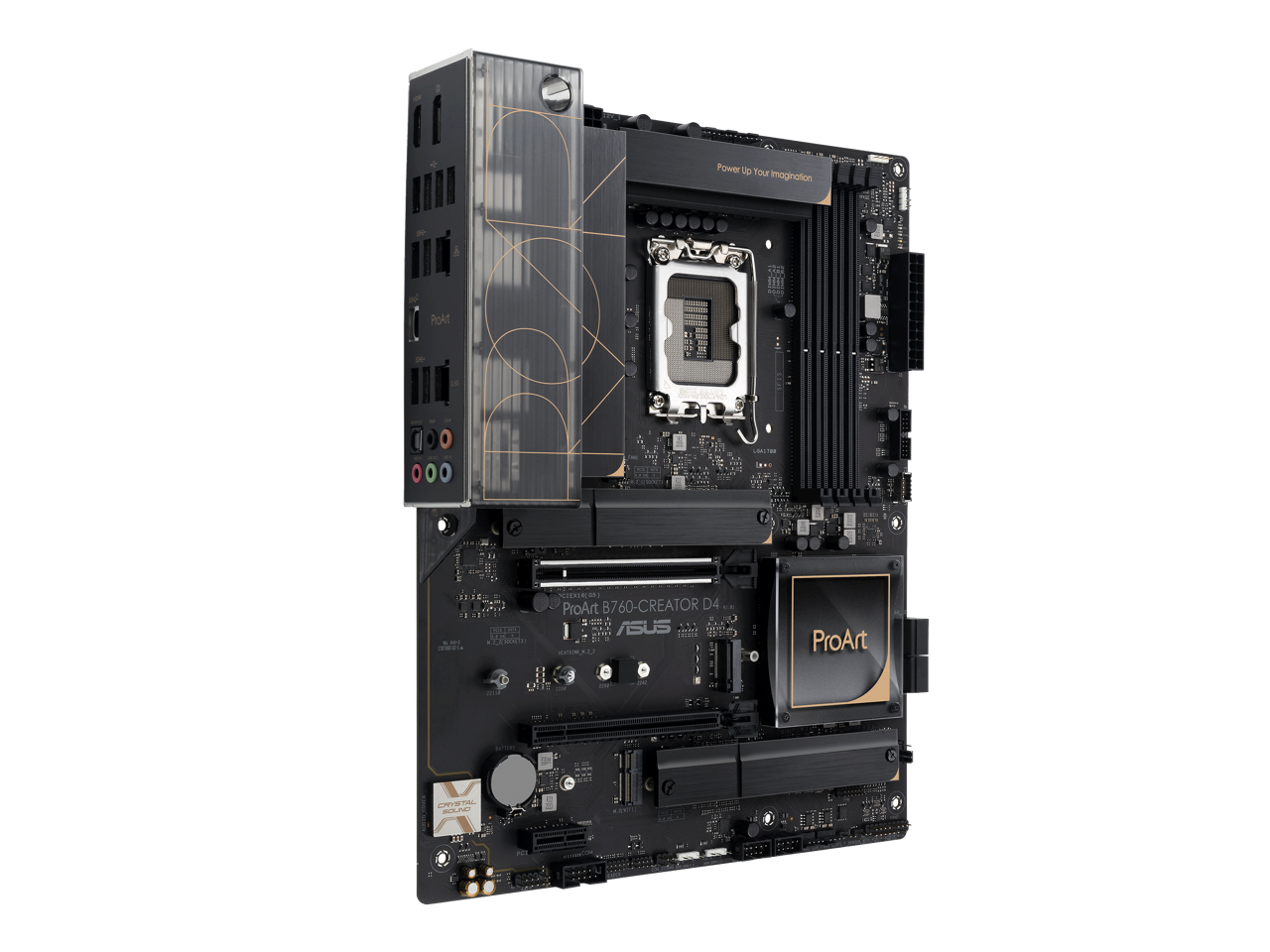

ASUS ProArt B760-CREATOR D4 Intel LGA 1700(13th and 12th Gen) ATX content creator motherboard, 12+1 power stages, DDR4, PCIe 5.0, three M.2 slots, 2.5 Gb & 1 Gb LAN, USB 3.2 Gen 2x2 Type-C front-panel connector, Thunderbolt (USB4®) header

Regular price Rs.0.00
Sale price Rs.0.00 Regular price
Save
  • Estimated Courier Delivery:25 May - 29 May

  • Free Shipping: On all orders

Secure checkout available for advance payments

Product description
  • The Intel LGA 1700 socket is equipped to handle both 12th and 13th Gen Intel Core processors, offers PCIe 5.0 support, and comes ready for Windows 11 right out of the box.
  • With three M.2 slots, Thunderbolt header support, USB 3.2 Gen 2x2 front panel connector, and 2.5 Gb & 1 Gb onboard Ethernet, the connectivity on this motherboard is comprehensive.
  • This motherboard is designed for next-gen performance, with 12+1 power stages rated for 50 amps and PCIe 5.0 readiness.
  • The thermal design of this motherboard is optimized with a massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers, and an AIO pump header.
  • Enjoy clear online communication with the Two-Way AI Noise Cancelation feature, and control your system with ease using ProArt Creator Hub with CreationFirst.
  • Advanced security features include USB port restriction, software blacklisting, and Windows Registry protection via ASUS Control Center Express.
  • ASUS Control Center Express provides USB port management, software blacklisting, and Regedit on/off controls for advanced security.
  • This motherboard has been rigorously tested for 24/7 operation and validated for extensive compatibility, ensuring trusted stability.



Model
Brand ASUS
Model PROART B760-CREATOR D4
Part Number 90MB1DU0-M0AAY0
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset  Intel B760
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 3200
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Memory Feature Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Expansion Slots
PCI Express 5.0 x16 Intel 13th & 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot
PCI Express 4.0 x16 Intel® B760 Chipset*
1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x1 1 x PCIe 3.0 x1 slot**
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode.
Intel B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)***
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SATA RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Onboard Audio
Audio Chipset  Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 1 x Realtek 2.5Gb Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless LAN M.2 slot only (Key E, PCIe)*
*Wi-Fi module is sold separately.
Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2 port (1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
1 x Intel® 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features
Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Packaging
Package Contents Cables
2 x SATA 6Gb/s cables

Miscellaneous
2 x M.2 Rubber packages
1 x Screw package for M.2 Key E
1 x ProArt ruler
1 x Q-connector

Installation Media
1 x Support DVD

Documentation
1 x ACC Express Activation Key Card
1 x User guide
Additional Information
Date First Available December 19, 2022
